Piezometer, DWLR in Bangalore

Piezometer & DWLR: The Backbone of Sustainable Groundwater Monitoring. As water scarcity intensifies across Indian cities, scientific groundwater management has become a necessity — not a choice. For industries, commercial buildings, residential layouts, and institutions, accurate and continuous monitoring of groundwater levels is crucial for compliance, sustainability, and efficient rainwater harvesting (RWH) performance.

Two of the most reliable technologies used in modern water governance in RWH are the Piezometer and DWLR (Digital Water Level Recorder). Together, they enable real-time monitoring, long-term analysis, and transparent reporting as per CGWA, KGWA, and IGBC guidelines.

This blog post covers everything you need to know — applications, benefits, working principles, standards, and implementation best practices.

Piezo Meter, DWLR in Bangalore

Why Piezometer, DWLR is Essential for Rainwater Harvesting in Bangalore?

1. Scientific Groundwater Monitoring

 Quantifies changes in groundwater levels after RWH implementation.

2. Mandatory for Regulatory Compliance

 Required by:

*CGWA (Central Ground Water Authority)**

*KGWA (Karnataka Ground Water Authority)**

*MoEF Norms**

*IGBC Green Building rating systems**

3. Performance Evaluation of RWH Systems

 Real data helps verify:

* Recharge pit efficiency

* Borewell recharge outcomes

* Rooftop RWH effectiveness

* Seasonal recharge patterns

4. Helps Prevent Over-Extraction

 Early warnings when groundwater drops beyond safe levels.

5. Supports Sustainable Water Governance

 Enables:

 * Year-on-year water planning

* Industry audit submissions

* Environmental clearance compliance

What is a Piezometer?

A Piezometer (Piezo meter) is a specialized monitoring bore used to measure the groundwater level or hydraulic head with high accuracy. It acts as an observation well for tracking aquifer behavior.

Purpose of a Piezo Meter

✔ Tracks water table fluctuations

✔ Measures aquifer recharge efficiency

✔ Monitors impact of rainwater harvesting systems

✔ Helps in groundwater modeling

✔ Supports regulatory compliance (CGWA/KGWA)

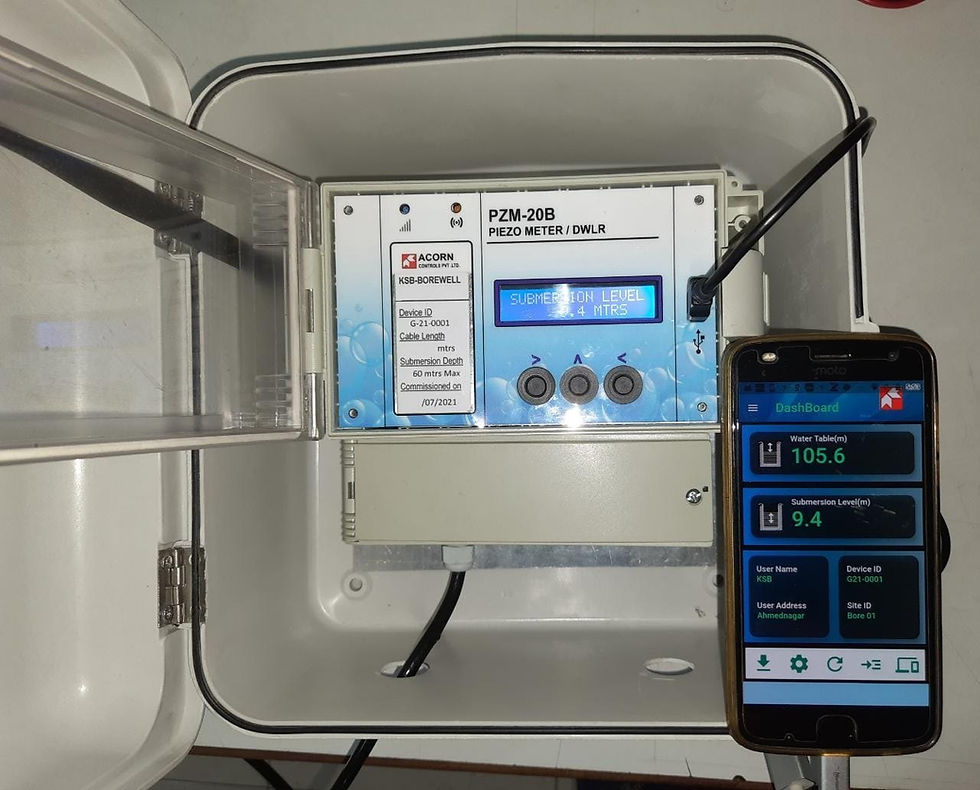

Piezo Meter

Types of Piezometers

Open Well-type Piezometer– Basic, low-cost

Standpipe Piezometer – PVC/MS pipe-based system

Electronic/Digital Piezometer – Compatible with DWLR

What is a DWLR (Digital Water Level Recorder)?

A Digital Water Level Recorder is an automatic data-logging equipment installed inside a piezometer to measure the water level at predefined intervals.

DWLR provides real-time, tamper-proof, and high-resolution water level data.

How DWLR Works

1. A pressure transducer or sensor is suspended inside the piezometer.

2. The DWLR records groundwater levels at intervals (e.g., every 15 minutes).

3. The system stores the data internally or transmits it via GPRS/SIM/IoT Cloud.

4. Reports are generated for government submissions or internal analysi

Key Features of DWLR

✔ High accuracy (±0.05% to ±0.1%)

✔ Cloud/SIM-based auto data transfer

✔ Internal memory backup (up to 1 year)

✔ Long battery life (3–5 years)

✔ Theft-proof & weatherproof

✔ IGBC, CGWA & BIS approved features available

Applications

Piezo Meters & DWLR are used across:

Industries

 Manufacturing, automotive, pharma, chemical, IT parks

Commercial Buildings

 Malls, tech parks, hospitals, hotels

Residential Townships

 Villas, apartments, gated communities

Government & Institutional Projects

 Universities, smart cities, municipal water programs

Rainwater Harvesting Projects

 Monitoring recharge borewells, percolation wells & recharge trenches

Complete Installation Scope

A professional RWH & groundwater monitoring provider offers:

1. Construction of Piezometer

* Bore size typically 4"–6"

* Depth based on geology (50–300 ft)

* Slotted pipes + gravel packing

* Cement sealing & top protection

2. Supply & Installation of DWLR

* Sensor lowering

* Logger configuration

* Cloud dashboard setup

3. Data Management

* Monthly/Quarterly reports

* Online real-time dashboard

* CGWA/KGWA-compliant reporting

4. Maintenance & Calibration

* Annual servicing

* Sensor recalibration

* Battery replacement

Conclusion

Piezo Meters and DWLRs are no longer optional — they are essential tools for organizations committed to sustainable water management, regulatory compliance, and scientific RWH performance measurement.

When installed correctly and monitored regularly, they provide unmatched clarity on groundwater behavior and long-term sustainability.
